Home
Laser Module
MS28
MS28
Accuracy
±1Y
Range
Max: 2000Y
Weight
66g
Size
27*50*50mm
Contact
Inquiry Now
Inquiry
Specification
MODEL
MS28-1000
MS28-2000
Max Distance
1000Y
2000Y
Accuracy
±1Y
±1Y
Resolution
0.1
0.1
Laser Wavelength
λ = 905nm
λ = 905nm
Red-Laser
λ = 635nm
λ = 635nm
Standy Current
<15mA
<15mA
Peak Current
<1.0A
<1.0A
Ranging Current
130mA,DURATION :0.5-1.5 Sec
130mA,DURATION :0.5-1.5 Sec
Red Laser Current
40mA
40mA
Ranging Frequency
0.7Hz-2Hz(Can Customized)
0.7Hz-2Hz(Can Customized)
Communication Port
IIC (UART & RS232 (Can Customized)
IIC (UART & RS232 (Can Customized)
Voltage
DC4V-6V(Normal:5V)
DC4V-6V(Normal:5V)
Standard V
5V
5V
Standby Consumer
<75mW
<75mW
Laser Safety
IEC60825-1 CLASS 1M
IEC60825-1 CLASS 1M
Working Temp
~10oC -+50 oC
~10oC -+50 oC
Storage Temp
~20oC -+60 oC
~20oC -+60 oC
Wire Remark
1:RX/SCL; 2: TX/SDA ; 3: GND ; 4: VCC
1:RX/SCL; 2: TX/SDA ; 3: GND ; 4: VCC
Weight
66g
66g
Size
27*50*50mm
27*50*50mm

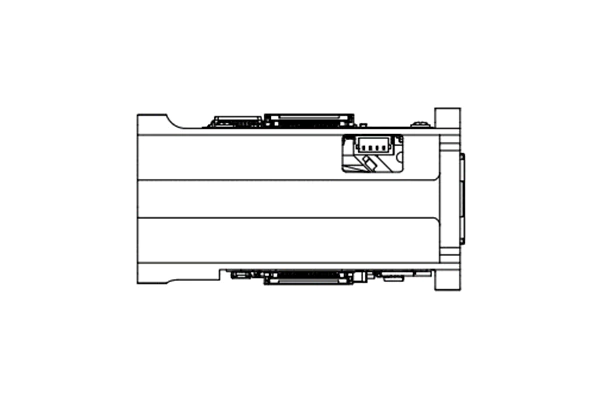

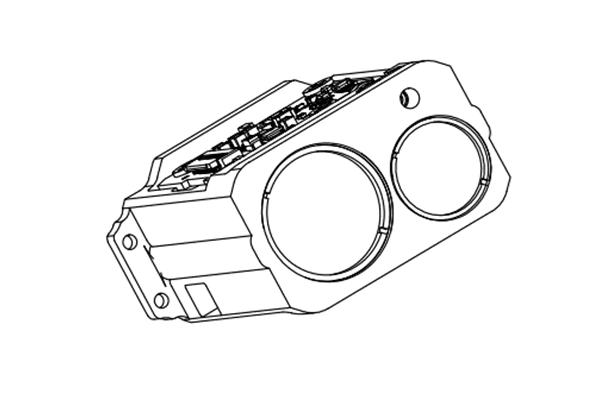

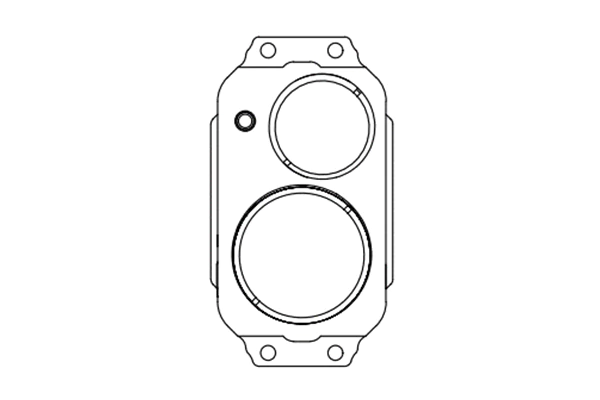

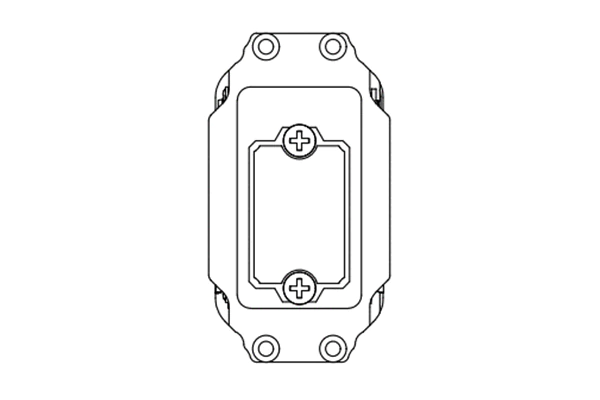

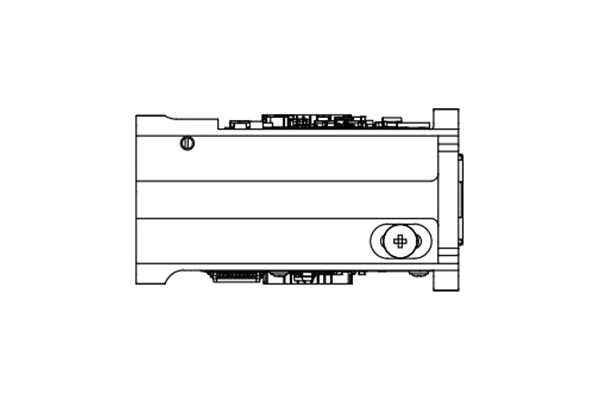

Line Drawing
